Rotary joints for diathermic oil up to 340°C

The dynamic Italian company Rotoflux has been producing rotary joints for over 20 years and has continuously grown until it has reached an important position among the manufacturers world leaders.

The complete range of rotary unions Rotoflux includes now the brand new G Series, developed for applications with diathermic oil up to a temperature of 340°C, in order to solve all security and duration issues caused by leakage. The rotating union Rotoflux Series G stands for innovative technical solutions, high quality materials and attention to detail and it reaches the top level of the best production available up to now.

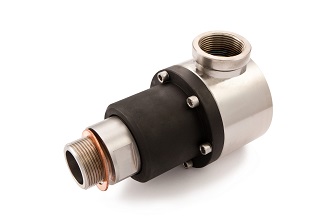

The rotary Rotoflux Series G is light but solid and it is made of phosphated steel, divided into two parts in order to optimise the assembly and maintenance. The clue of the G Series is the stainless steel bellow, developed by the R&D Rotoflux team. Combined with mechanical seals in flat contact surface, it ensures an excellent performance in all conditions, durability and high safety standards. A microlapped carbographite seal, driven by a stainless steel bellows and by four positioning springs, works coupled with the flat surface of the shaft rotor, providing a constant tightness level over time.

Two graphite bushings, resistant to high temperatures, enable an optimal rotation of the stainless steel shaft whose inner end to the joint is thoroughly hardened and lapped.

Rotoflux has always paid attention to the market trends and the new G Series is also available in sizes ¾ " and 2", configured with a threaded or flanged rotor shaft, with single or double passage, with stationary or rotating siphon. The performances with the maximum speed of rotation of 500 rev/min and a maximum pressure of 10 bar meet every requirement.
