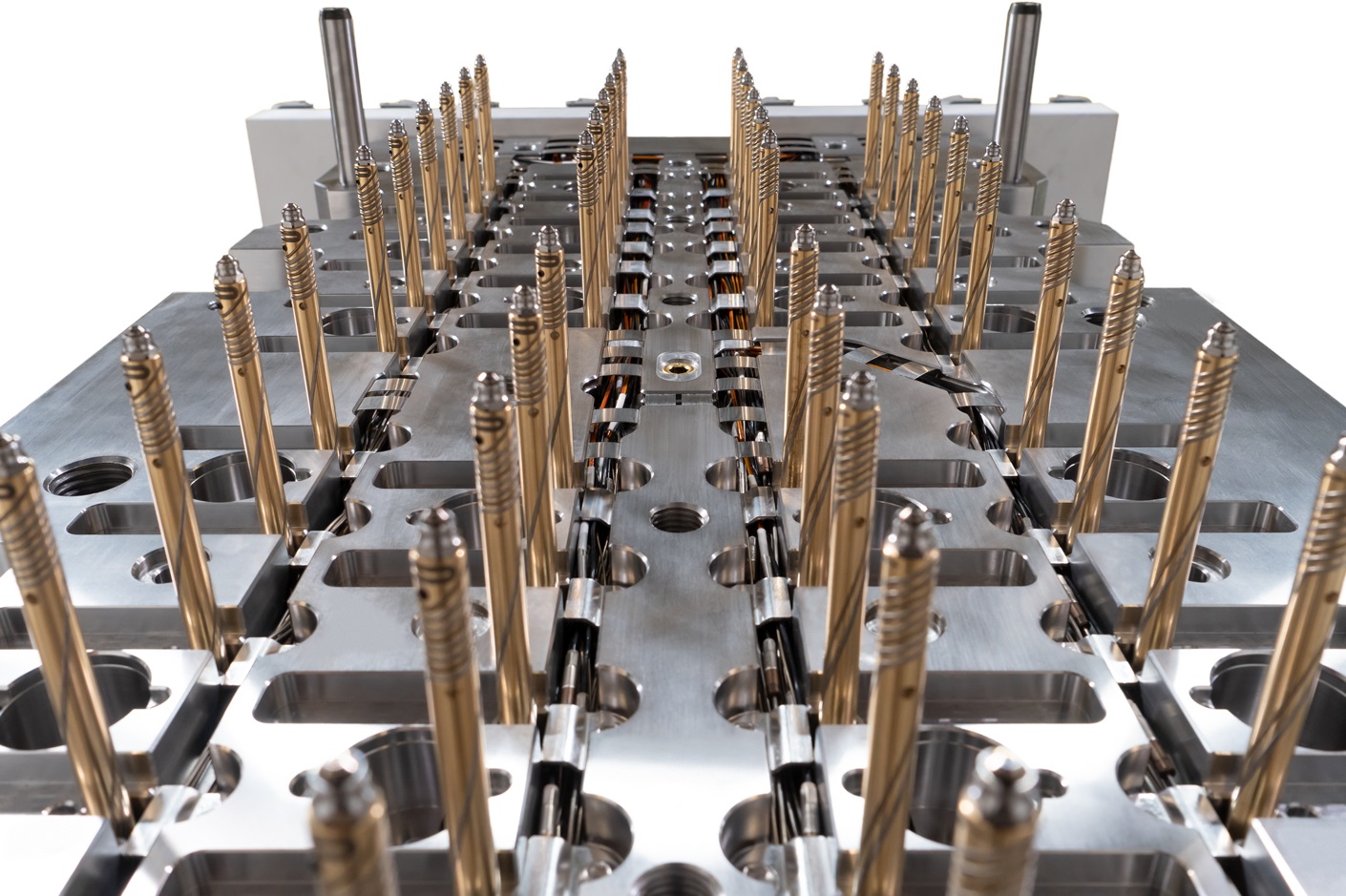

Award-winning Ultra Helix 250 T2 nozzle for small parts

The leading industrial technology provider to the plastics processing community, Husky Injection Molding Systems announce the release of the newest addition to the Ultra Helix Valve Gate nozzle lineup, the Ultra Helix 250 T2. The advanced design of Ultra Helix nozzles minimizes wear, providing industry leading gate quality and longevity. The award-winning Ultra Helix 250 T2 was specifically developed to extend the benefits of the Ultra Helix technology for small part weights with difficult to access gate locations.

With a 12-mm nozzle bore, the Ultra Helix 250 T2 allows for direct gating in locations not achievable with larger nozzles. The pitch spacing down to 15 mm enables the highest cavitation density and smallest mold footprint.

The Ultra Helix 250 T2’s extended maintenance interval PX actuation is designed for applications with leakage prone resins like TPE and PE. The addition of a stem seal paired with enhanced thermal management heater technology improves performance and significantly optimizes maintenance requirements. This results in lower risk and cost of ownership.

The Individual Pneumatic option offers pitch spacing down to 25.4 mm, providing ease of access for maintenance with the ability to individually access valve stems without removing the backing plate. Both the plate actuated UltraSync-P or servo driven UltraSync-E options can achieve 15-mm pitch spacing.

Husky global customers are already taking advantage of the Ultra Helix 250 T2’s performance to make high quality precision parts from medical barrier closures and flow regulation valves to personal care products, food and beverage packaging and flip top closures. The part weights being produced range from less than 0.1 g to over 4 g and are being made from resins that are prone to leakage like PP, HDPE, LDPE, TPE and TPV, in both single injection and multi-material applications. The Ultra Helix 250 T2 is already demonstrating its superior performance for small part weight with difficult to access gate location applications in both Individual Pneumatic and UltraSync actuations. The extended maintenance interval for leakage prone resins is providing additional value for the customer.
